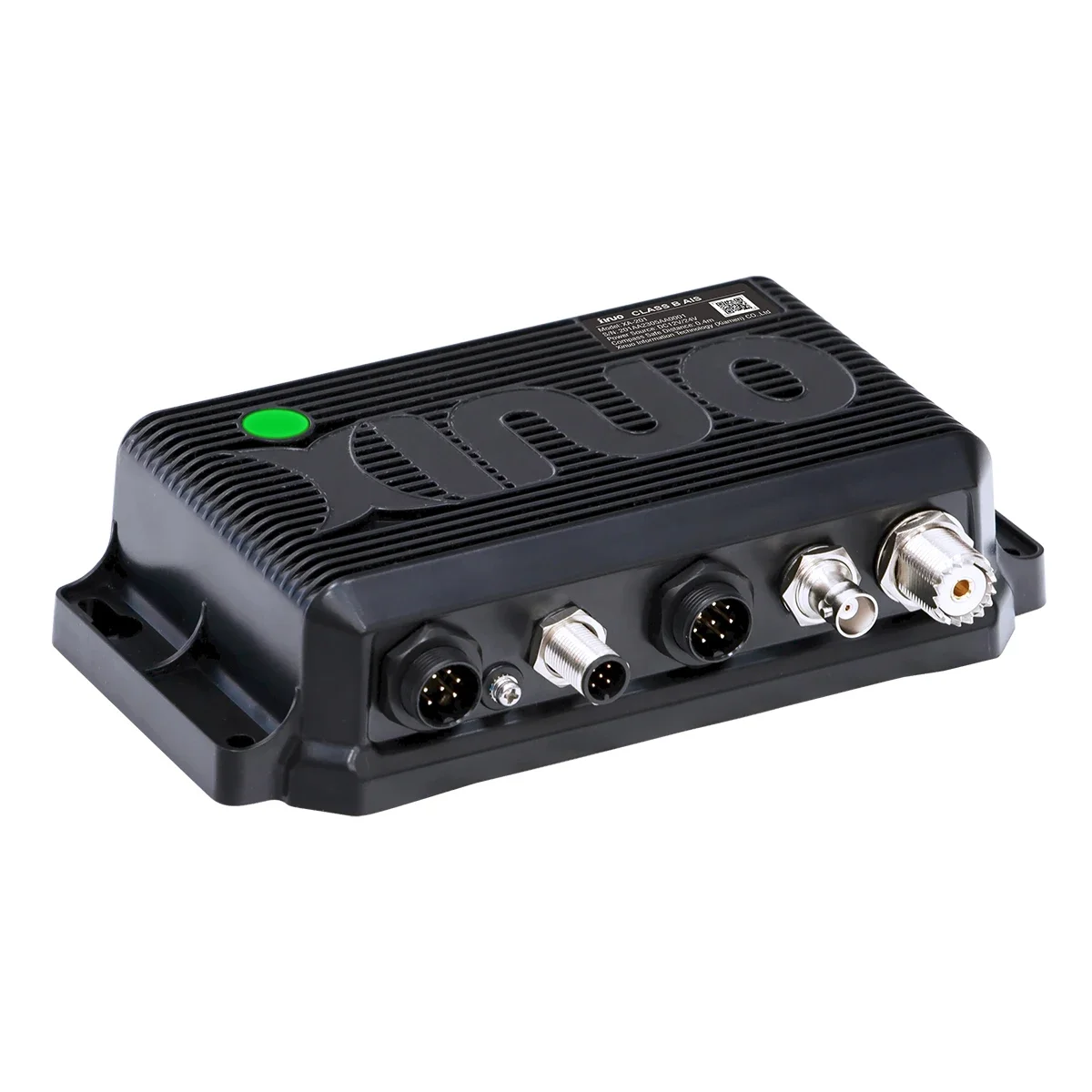

XA-201 Automatic Identification System Marine marine AIS class B transponder transducer Built-in WIFI by Phone APP

XA-201 Class B Automatic Identification System
Model：XA-201

· Tested and approved by BSH, CE RED certied.
· Built-in WIFI and Bluetooth get AIS information by Phone APP.

◆ Tested and approved by BSH, CE RED certied.

◆ Meet the IEC 62287-1; IEC 61108-1; IEC 61162-1; IEC 60945; ITU-R M.1371-5; IMO.A.694(17) standards.

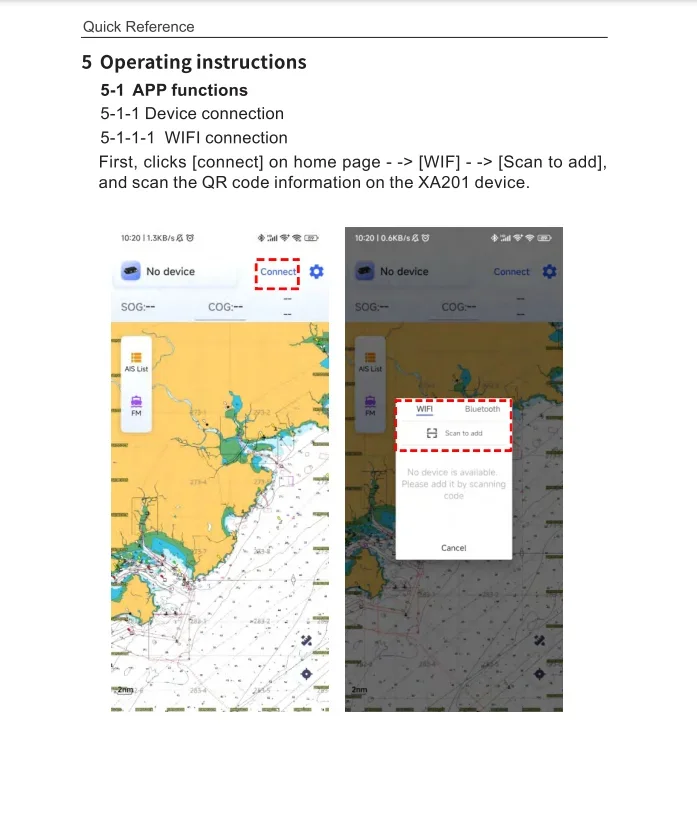

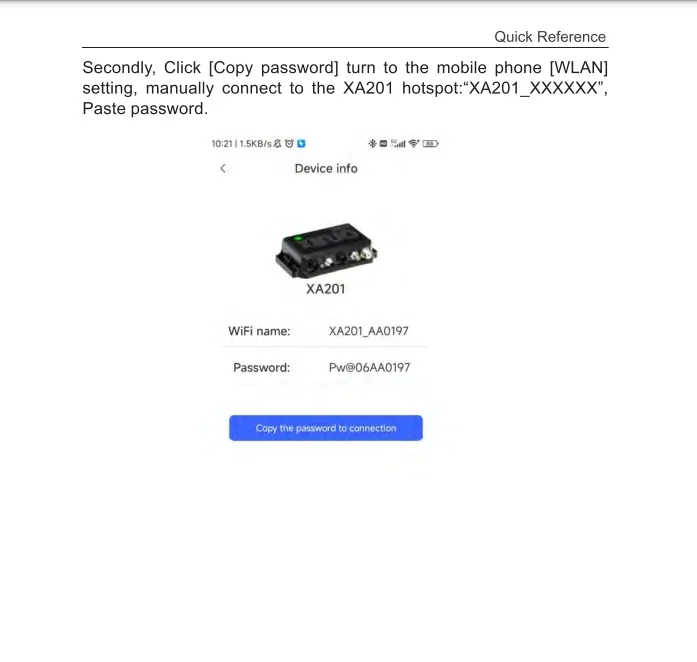

◆ Built-in WIFI and Bluetooth get AIS information by Phone APP.

◆ Built-in dual-mode high-precision positioning module (BDS and GPS), providing stable and reliable positioning accuracy.

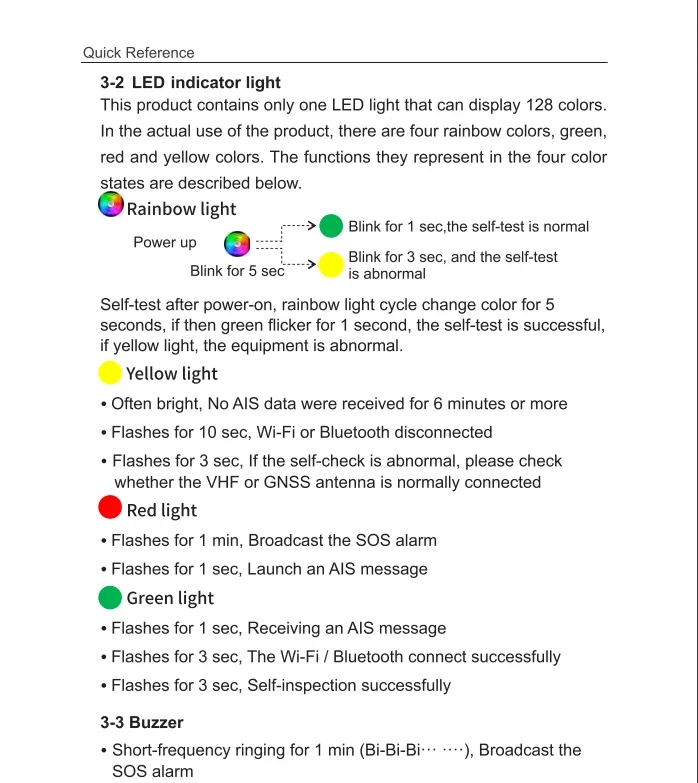

◆ Built-in buzzer providing audible alerts for the device's operational status.

◆ IP67 waterproof rating.

◆ Wide voltage, floating ground power design for enhanced stability and reliability.

◆ Support NMEA-2000 and NMEA-0183.

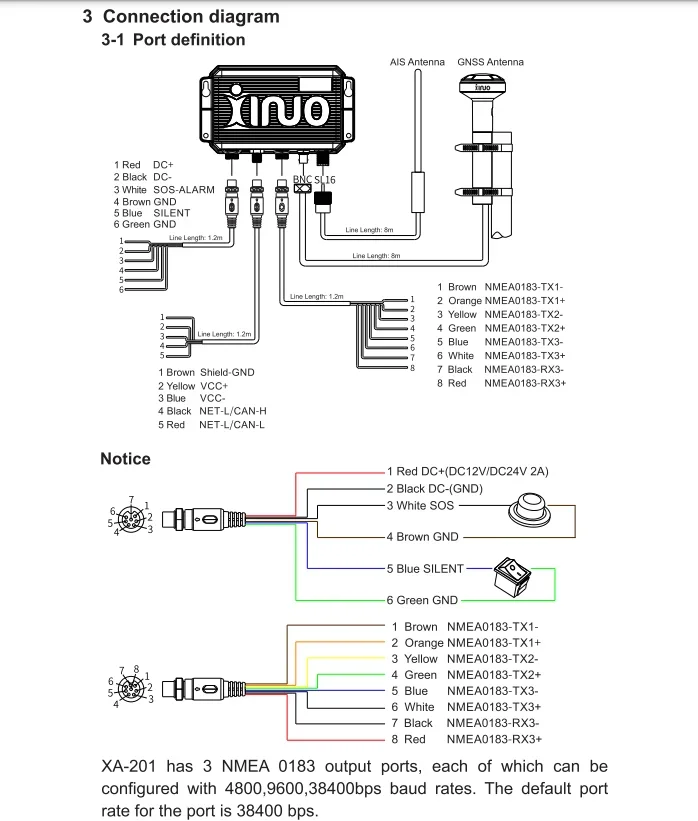

Data port


GNSS Antenna Connector

BNC

VHF Antenna Connector

Sl16（(Female)

NMEA0183

4 ports data interface, including 3 ports output, 1 ports intput

NMEA2000

Support GNSS, AIS data transmission

Power Connector

Support external power supply; external alarm

AIS Class B


Frequency

156.025~162.025MHz

Bandwidth

25KHz

Modulation

GMSK / FM

Data Rate

9600bps

Number of AIS transmitter

1

Number of AIS Receiver

 2 (Contains A and B channels)

AIS Channel A(default)

CH87B(161.975MHz)

AIS Channel B(default)

CH88B(162.025MHz)

TX Power Output

2W / 5W

Protocol

CSTDMA

RX Sensivity

≤ -112dBm @ 20% PER

GNSS


GNSS Receiver

72 channels

Receive Frequency

GPS L1: 1575.42MHz；BDS B1: 1561.098MHz

Accuracy

GPS&BDS

2.5m(CEP50% open sky)

GPS

5m(CEP50% open sky)

BDS

5m(CEP50% open sky)

Speed Accuracy

0.1m/s(50%@10m/s)

Time to First Fix

Cold Start <30s , Hot Start <1s

Standards

IEC 62287-1; IEC 61108-1; IEC 61162-1; IEC 60945; ITU-R M.1371-5; IMO.A.694(17)

Enviromental


Working Temperature

-15℃～+55℃

Waterproofing

IP67

Power Supply

DC12V/DC24V
